Product Details:
|
| Product Name: | Crawler Mucking Loader | Applicable Industries: | Construction Works |
|---|---|---|---|
| Marketing Type: | Ordinary Product | Certificate: | ISO9001 |
| Feature: | Mineral Equipment | Keywords: | Mucking Loader |
Initially founded in 1998,Shandong Shante Heavy Industry Machinery Co.,Ltd. are located in Yuncheng Industry Zone of Heze city Shandong Province.The transport is very convenient.Qingdao port is 500km far away from our company and Jinan Airport is 150km far way from our company.

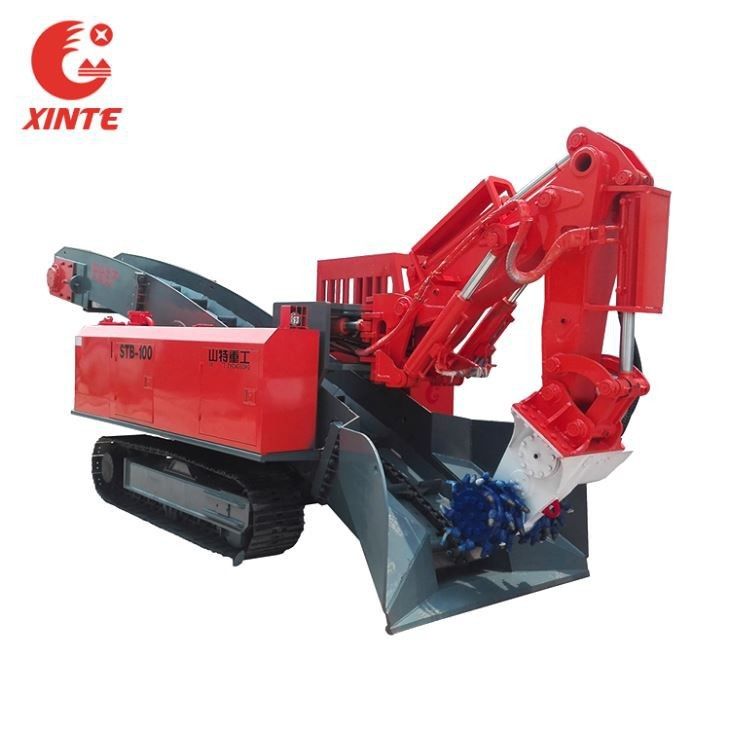

Model STX-100 Crawler Mucking Loader With Milling Head is usded for hydropower project tunnel construction or coal mine digging or soft sandstone tunneling.
Mucking Loader for Hydropower Station Project intergrate digging and collecting and conveying and dumping, it is a muti-function high efficiency and continuous working loader.
It has a advantage of high efficiency and environmental and compact structure.Mucking Loader for Hydropower Station Project.
FAQ:
Q: What is the delivery time ?
A: Normally the leadtime is 10 days after receipt of 30% deposit.
Q: What is the Payment terms ?
A: TT OR LC.
Q: Are you manufacturer or trading company ?
A: We are manufacturer,not dealer. Your are welcome to our manufacturer.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
Q: Can you customize the products as per request ?
A: Yes,we can customize your products.
Q: What is the drive mode of your products ?
A: The products drive mode is electric drive.
|
Model STX-100 Crawler Mucking Loader With Milling Head Technical Data |
|
|
Excavating Width(mm) |
4800 |
|
Excavating Length(mm) |
1850 |
|
Excavating Height(mm) |
2800 |
|
Excavating Depth(mm) |
500 |
|
Unloading Height(mm) |
1700(changeable) |
|
Minimum Loading Height(mm) |
1350(Changeable) |
|
Unloading Distance(mm) |
1700(changeable) |
|
Maximum Rotation Angle(°) |
±50 |
|
Weight(T) |
8.2 |
|
Dimension(mm) |
6100x1700x1800 |
|
Loading Capacity(m³/hour) |
80 |
|
Min Turning Radius(mm) |
5500 |
|
Climbing Ability(°) |
≤25(hard ground) |
|
Travelling Speed(m/min) |
2-3.8 |
|
Applied Tunnel Gradient(°) |
≤18 |
|
Motor Power(kw) |
30 |
|
Maximum Material By Size(LxWxH) (mm) |
650x700x650 |
|
Ground Clearance(mm) |
230 |
|
Applied Working Section(W*H) (m) |
≥2.2x2.2 |
|
Nominal Working Pressure(Mpa) |
20 |
