Product Details:
|
| Product Name: | Crawler Mucking Loader | Applicable Industries: | Construction Works |
|---|---|---|---|
| Marketing Type: | Ordinary Product | Certificate: | ISO9001 |
| Feature: | Mineral Equipment | Keywords: | Mucking Loader |
"Building a globalized and establishing a trustworthy brand", we will always insist on the product diversification strategy centered on mining machinery, push the continual improvement, continually enrich the production lineup, promote the product quality and brand reputation, and build a domestic first-class and international renowned mining machinery base.

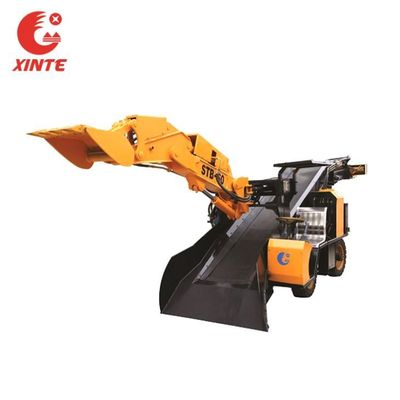

Tunnel mucking loader is also called excavating loader.The products adopt electric full-hydraulic drive system,,integrating hydraulic travelling,digging,collecting,conveying and dumping. Tunnel mucking loader structure is compact, pushing force is large, digging range is wide,whole section excavating,no need manual work to clean the working site.The products is easy to operate,stable performance,easy to maintain,safe,reliable and environmental,high-efficiency,saving manpower.
Model STB-60TS walk with four skid steer wheel, can 360 degree turn on the spot.
Tunnel mucking loader can be made folding type on the end of conveyor trough that shorten the length and convenient to turn.
Model STB-60TS is applicable within 10 degree and 2x2m(width and height) tunnel
The loading capacity is 60 cbm per hour.
Pls let me know your size of working section width and height,and related working condition such as the tunnel slope etc,your mine is coal mine or other metal mine ? So that I can recommend you the right machine for you.
|
Model STB-60TS Wheel Mucking Loader Technical Data |
|
|
Excavating Width(mm) |
4200 |
|
Excavating Length(mm) |
1600 |
|
Excavating Height(mm) |
1800-2700 |
|
Excavating Depth(mm) |
450 |
|
Unloading Height(mm) |
1200-1600(changeable) |
|
Minimum Loading Height(mm) |
1100(Changeable) |
|
Unloading Distance(mm) |
1600(changeable) |
|
Maximum Rotation Angle(°) |
±50 |
|
Weight(T) |
4.5 |
|
Dimension(mm) |
5600x1650x1700 |
|
Loading Capacity(m³/hour) |
60 |
|
Min Turning Radius(mm) |
4600 |
|
Climbing Ability(°) |
≤10(hard ground) |
|
Travelling Speed(m/min) |
2-4.5 |
|
Motor Power(kw) |
22 |
|
Maximum Material By Size(LxWxH) (mm) |
810x580x420 |
|
Ground Clearance(mm) |
200 |
|
Applied Working Section(W*H) (m) |
≥2x2 |
|
Nominal Working Pressure(Mpa) |
20 |
