Product Details:
|
| Product Name: | Crawler Mucking Loader | Applicable Industries: | Construction Works |
|---|---|---|---|
| Marketing Type: | Ordinary Product | Certificate: | ISO9001 |
| Feature: | Mineral Equipment | Keywords: | Mucking Loader |
Product Description

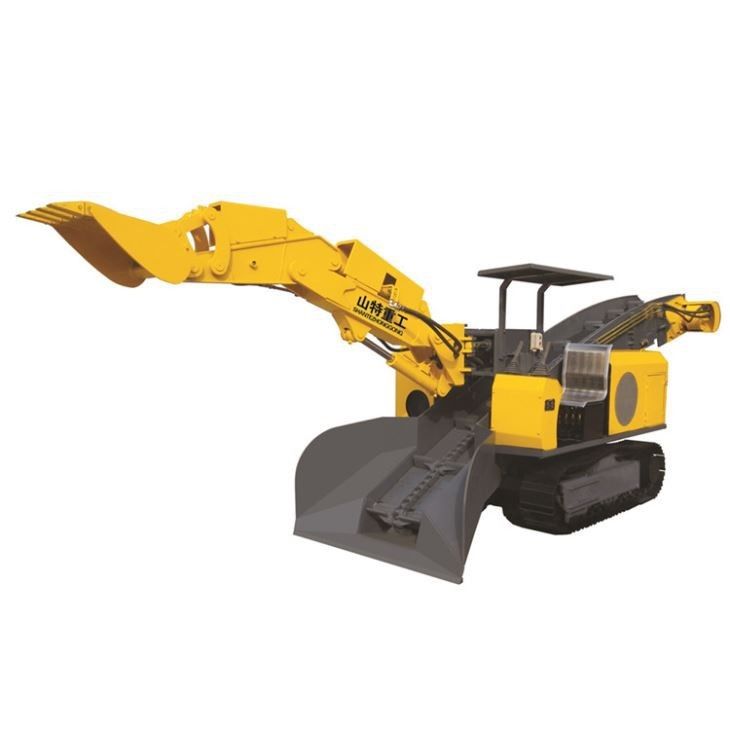

-The Tunnel Muck Loading Equipment is the newest product which adopts the electric full-hydraulic drive system. It is versatile that it can not only collect the materials, but also convey and dump the materials with fast speed.
-In order to improve the working efficiency, it adopts the large capacity that it is capable of conveying a large amount of materials for one time, contributing to save time, energy and money.
-Sturdy frame which is made of superior alloy steel, it is strong enough to bear the whole weight in order to support the stable and efficient operation. And it is easy to maintain and clean with the resistance to corrosion, dust and water.
-Due to its high efficiency, reasonable price as well as durable life span, it is widely used for mining of coal mine, metal mine, non-metal mine and tunnel digging of hydropower project.
-Manufactured with strict process, the Tunnel Muck Loading Equipment has guaranteed quality which also has elegant appearance owing to the good treatment by experienced workers with exquisite craftsmanship.
|
Technical Data |
|
|
Excavating Width(mm) |
3870 |
|
Excavating Length(mm) |
1530 |
|
Excavating Height(mm) |
2300 |
|
Excavating Depth(mm) |
450 |
|
Unloading Height(mm) |
1400 |
|
Unloading Distance(mm) |
1600 |
|
Maximum Rotation Angle(°) |
±50 |
|
Weight(T) |
7.5 |
|
Dimension(mm) |
5000x1490x1650 |
|
Loading Capacity(m³/hour) |
60 |
|
Min Turning Radius(mm) |
4000 |
|
Climbing Ability(°) |
≦20(hard ground) |
|
Motor Power(kw) |
22 |
| Ground Clearance(mm) |
260 |
|
Applied Working Section(W*H) (m) |
≥2.0x2.0 |
|
Nominal Working Pressure(Mpa) |
20 |
