Product Details:
|
| Product Name: | Tunnel Mucking Loader | Usage: | Mining Core |
|---|---|---|---|
| Color: | Customer's Request | Advantage: | High Capacity |
| Application: | Mining Equipment | Certificate: | ISO CE |

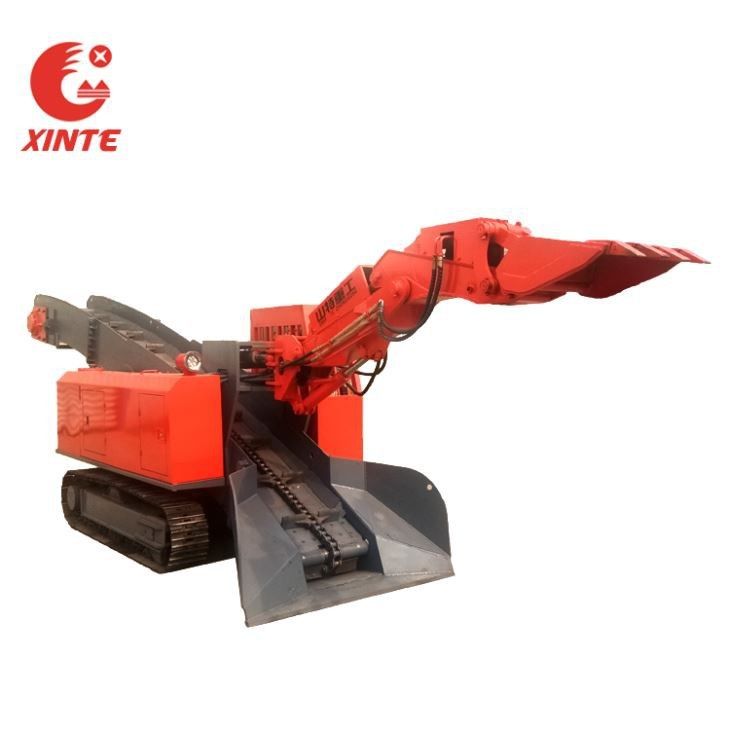

Model ZWY-120/55L Crawler Mucking Loader is for coal mine, and electric motor is explosion-proof.
Used for dig and transport the rock in tunnel, underground loader, mainly use to dig the rock, and transport the rock to the truck or mine rail cart is a kind of high efficiency equipment for load the rock. Use in mine tunnel, road tunnel, culvert, tunnel dig and load work. New Condition Tunnel Loader Suit for tunnel bigger than 3*3M(w*h), gradient<=22degree, big and medium tunnel. The most suit rock is f<=12, gradient <=600mm, working temperature 2~50 degree. Blast proof motor, the best Chinese filter system, famous brand hydraulic system
Products Advantage
Compact structure
Easy to handle and maintain
Stable and durable performance
High efficiency and saving man power
Energy conservation and environment protection
FAQ:
Q: What is the delivery time ?
A: Normally the leadtime is 10 days after receipt of 30% deposit.
Q: What is the Payment terms ?
A: TT OR LC.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
Q: Can you customize the products as per request ?
A: Yes,we can customize your products.
|
Model ZWY-120/55L Crawler Mucking Loader Technical Data |
|
|
Excavating Width(mm) |
5300 |
|
Excavating Length(mm) |
2200 |
|
Excavating Height(mm) |
3300 |
|
Excavating Depth(mm) |
700 |
|
Unloading Height(mm) |
1913(changeable) |
|
Minimum Loading Height(mm) |
1680(Changeable) |
|
Unloading Distance(mm) |
2000(changeable) |
|
Maximum Rotation Angle(°) |
±50 |
|
Weight(T) |
14.8 |
|
Dimension(mm) |
6500x2000x2300 |
|
Loading Capacity(m³/hour) |
120 |
|
Min Turning Radius(mm) |
5700 |
|
Climbing Ability(°) |
≤25(hard ground) |
|
Travelling Speed(m/min) |
2-3.8 |
|
Applied Tunnel Gradient(°) |
≤18 |
|
Motor Power(kw) |
45 |
|
Maximum Material By Size(LxWxH) (mm) |
800x780x700 |
|
Ground Clearance(mm) |
270 |
|
Applied Working Section(W*H) (m) |
≥3x3 |
|
Nominal Working Pressure(Mpa) |
25 |
