Product Details:
|
| Product Name: | Tunnel Mucking Loader | Usage: | Mining Core |
|---|---|---|---|
| Color: | Customer's Request | Advantage: | High Capacity |
| Application: | Mining Equipment | Certificate: | ISO CE |
Mucking loader is also called excavating loader.The products adopt electric full-hydraulic drive system,,integrating hydraulic travelling,digging,collecting,conveying and dumping. The products structure is compact, pushing force is large, digging range is wide,whole section excavating,no need manual work to clean the working site.The products is easy to operate,stable performance,easy to maintain,safe,reliable and environmental,high-efficiency,saving manpower.
Muck Loader Maintenance
Replace a new drive sprocket if it is abraded. Replace it as per the following steps:
(1) To remove the abraded drive sprocket, firstly we need to take apart the chain by knocking out the elastic pin which is used to stabilize the chain.
(2) After taking apart the chain, we next need to use oxy-acetylene flame to remove the old welding line.
(3) After these, the old abraded drive sprocket could be taken down.
(4) Then mount the new one on.
(5) To fasten the new one, firstly we need to knock in a plastic pin and make the open of the elastic pin facing axis line.
(6) Then weld this open area using welding rod 506 or 507.
(7) After that we put on the chain.
Products Advantage:
Compact structure
Easy to handle and maintain
Stable and durable performance
High efficiency and saving man power
Energy conservation and environment protection
Shiping:
* If the size is suitable for container ship, usually by container;
* If the size is too big, usually by bulk ship or by container after truncation;
* Transport ways are based on reducing cost for you and keep the crane performance!
* We have developed long-term and excellent relationship with many ocean freight partners, such as APL, COSCO, OOCL, CSCL, MSC, etc. And train carrying is also available.The complete mode of shipping and best service with lowest price are always provided for customers.
Parts pictures:

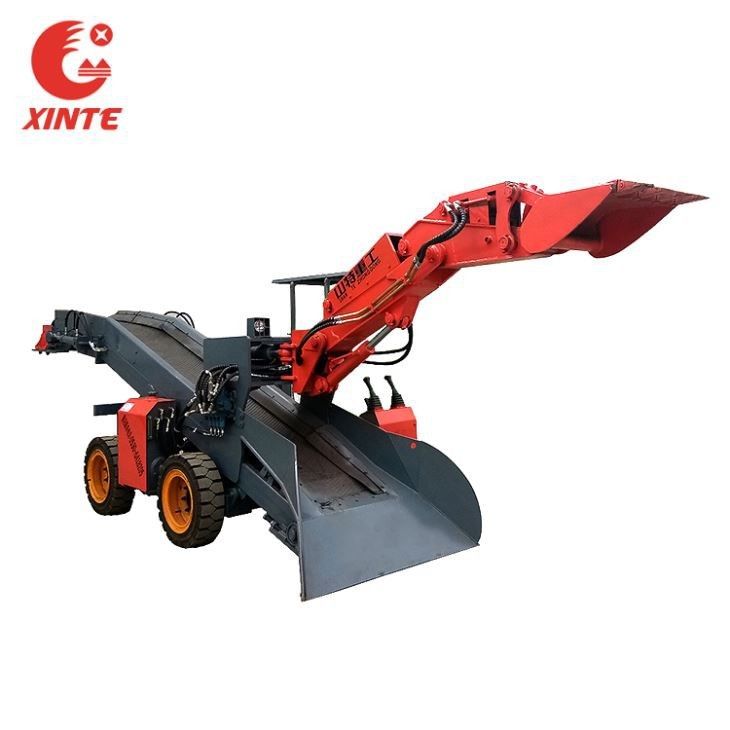

Model ZWY-60/22T Wheel Mucking Loader Technical Data | |
Excavating Width(mm) | 4200 |
Excavating Length(mm) | 1600 |
Excavating Height(mm) | 1800-2700 |
Excavating Depth(mm) | 450 |
Unloading Height(mm) | 1200-1600(changeable) |
Minimum Loading Height(mm) | 1100(Changeable) |
Unloading Distance(mm) | 1600(changeable) |
Maximum Rotation Angle(°) | ±50 |
Weight(T) | 4.5 |
Dimension(mm) | 5600x1650x1700 |
Loading Capacity(m³/hour) | 60 |
Min Turning Radius(mm) | 4600 |
Climbing Ability(°) | ≤10(hard ground) |
Travelling Speed(m/min) | 2-4.5 |
Motor Power(kw) | 22 |
Maximum Material By Size(LxWxH) (mm) | 810x580x420 |
Ground Clearance(mm) | 200 |
Applied Working Section(W*H) (m) | ≥2x2 |
Nominal Working Pressure(Mpa) | 20 |
