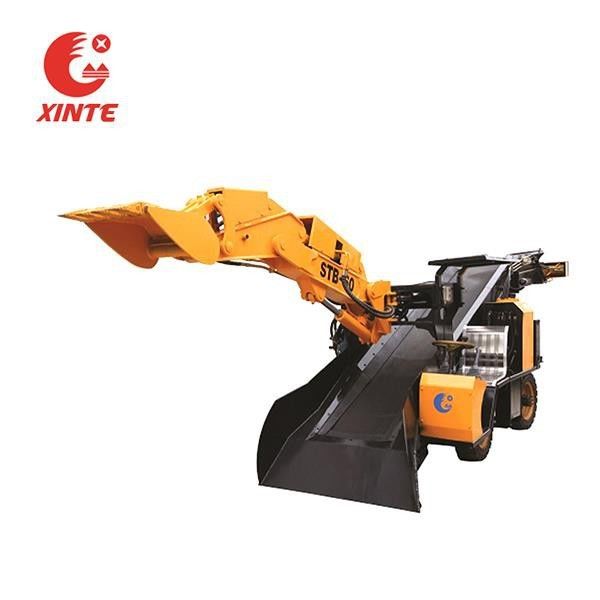

Tunnel Digging Loader

Tunnel Digging Loader
Tunnel Digging Loader

Large Image :  Tunnel Digging Loader

Product Details:
Place of Origin: shandong
Brand Name: Shante
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: package
Delivery Time: 5-8 day
Payment Terms: negotiate

Tunnel Digging Loader

Description
Product Name: Tunnel Mucking Loader Usage: Mining Core
Color: Customer's Request Advantage: High Capacity
Application: Mining Equipment Certificate: ISO CE

Tunnel Digging Loader

 Use of mucking loader

During the horizontal rotation and extension of working mechanism, the fast or jerky movements (fierce acceleration and braking) must be avoided, otherwise the equipment will be unstable in the horizontal direction, even in danger of tipping.

Due to the risk of tipping, it is not allowed to use the repeated alternating movement of the working mechanism to achieve the purpose of equipment vibration.

The working mechanism can only be pressed into the soil with the power of bucket hydraulic cylinder. Because the resulting leverage can cause overload damage to the hydraulic cylinder of the work mechanism, hinge bolts or steel structure, it is not allowed to use the walking mechanism to perform this work in any case.

During tunneling, the working mechanism shall be pressed on the working face at the angle of 90. After the completion of excavation, the method of withdrawing equipment shall be used to remove the soil and stone materials instead of moving the entire working mechanism.







Mucking Loader Model STB-60TS Technical Data

Excavating Width(mm)

4200

Excavating Length(mm)

1600

Excavating Height(mm)

1800-2700

Excavating Depth(mm)

450

Unloading Height(mm)

1200-1600(changeable)

Minimum Loading Height(mm)

1100(Changeable)

Unloading Distance(mm)

1600(changeable)

Maximum Rotation Angle(°)

±50

Weight(T)

4.5

Dimension(mm)

5600x1650x1700

Loading Capacity(m³/hour)

60

Min Turning Radius(mm)

4600

Climbing Ability(°)

7(hard ground)

Travelling Speed(m/min)

2-4.5

Electric Motor Power(kw)

22

Maximum Material By Size(LxWxH) (mm)

810x580x420

Ground Clearance(mm)

200

Applied Working Section(W*H) (m)

2x2



 Tunnel Digging Loader

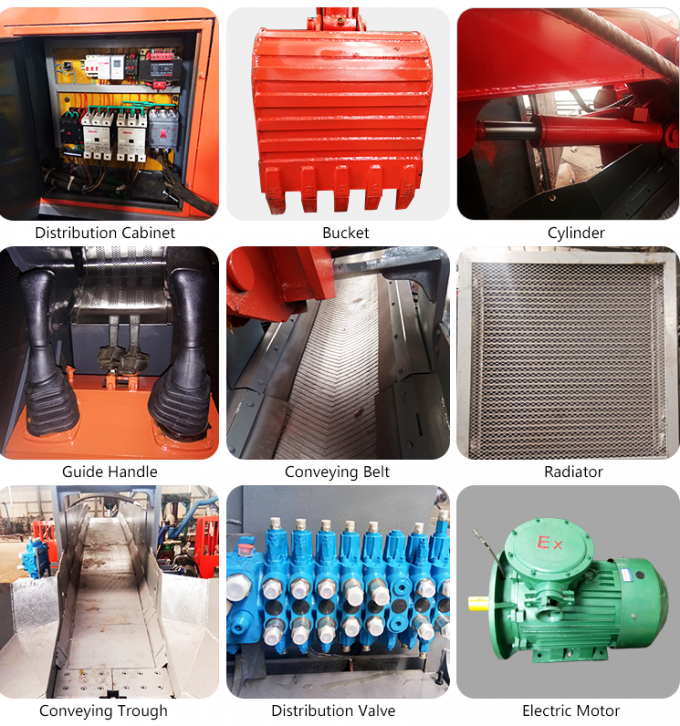

 Spare parts photos:
