Product Details:
|
| Product Name: | Railway Mucking Loader | Applicable Industries: | Construction Works , Energy & Mining |
|---|---|---|---|
| Marketing Type: | Ordinary Product | Core Components: | Engine, Bearing, Motor |
| After-sales Service: | Video Or Technical Support | Video Outgoing-inspection: | Provided |
Product Description

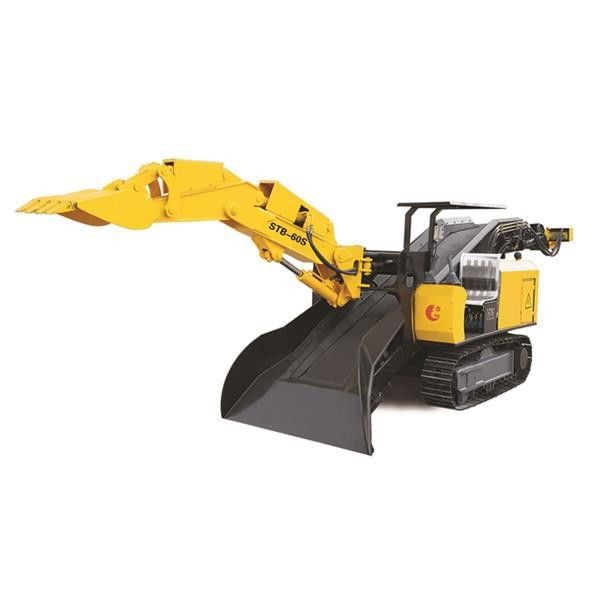

1. The Rock Mucking Crawler Loader is suitable for thin seam coal mining which is the first excavation equipment for coal mine, hard rock in non-coal mine and big slope inclined roadway construction.
2. Rock Mucking Crawler Loader is configured with high pressure spraying device, which has function of explosion proof and dedusting n order to make sure the safe working environment.
3. Compact structure which is made of premium alloy steel, the Rock Mucking Crawler Loader has good treatment which has smooth surface with no burrs, providing the comfortable using experience.
4. Rock mucking loader perfectly integrates functions of excavator, loader and bulldozer together. Hence, the motor rotation frequency of this excavator is decreased. It does not need to perform needless actions, such as moving back and forward, so as to save power.
5. Our innovated rock excavation equipment also solves high oil temperature of hydraulic system caused by long time operating. This improvement prolongs service life of hydraulic component as well as enhances equipment reliability.
6. In accordance with the principle of environmental protection, it produces no harmful substances that it is eco-friendly, making the nature beautiful.
|
Technical Data |
|
|
Excavating Width(mm) |
4200 |
|
Excavating Length(mm) |
1600 |
|
Excavating Height(mm) |
1800-2700 |
|
Excavating Depth(mm) |
450 |
|
Unloading Height(mm) |
1200(changeable) |
|
Minimum Loading Height(mm) |
1300-1600(changeable) |
|
Unloading Distance(mm) |
1600(changeable) |
|
Maximum Rotation Angle(°) |
±50 |
|
Weight(T) |
6.5 |
|
Dimension |
5000x1650x1750 |
|
Loading Capacity(m³/hour) |
60 |
|
Min Turning Radius(mm) |
5500 |
|
Climbing Ability(°) |
≦20(hard ground) |
|
Travelling Speed(m/min) |
2-4.5 |
|
Motor Power(kw) |
22 |
|
Maximum Material By Size(LxWxH) (mm) |
680x580x500 |
|
Ground Clearance(mm) |
200 |
|
Applied Working Section(W*H) (m) |
≥2.0x2.0 |
|
Nominal Working Pressure(Mpa) |
20 |
|
Applied Tunnel Gradient(°) |
≤15 |
