Product Details:
|
| Product Name: | Railway Mucking Loader | Applicable Industries: | Construction Works , Energy & Mining |
|---|---|---|---|
| Marketing Type: | Ordinary Product | Core Components: | Engine, Bearing, Motor |
| After-sales Service: | Video Or Technical Support | Video Outgoing-inspection: | Provided |
Product Description

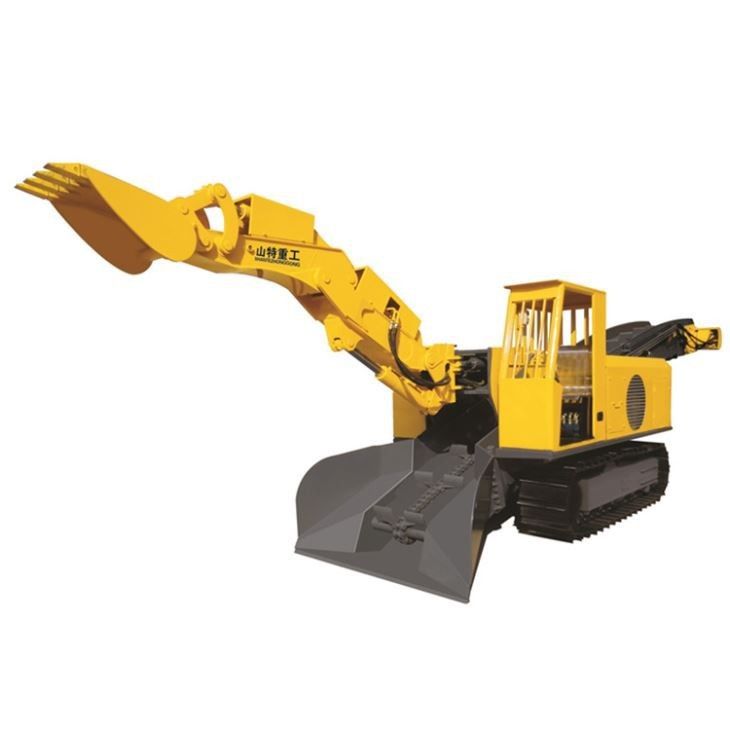

-The Mucking Loader for Tunnel Project is available to provide an efficient, reliable, cost-effective and lower-risk method of removing muck and spoil from tunneling excavation sites.
-Adopting quick coupler, the operating mechanism is suitable for tunneling rock strata with different hardness.
-Mucking Loader for Tunnel Project can complete whole section excavating and mucking operation without dead angle. Besides, mucking task can be finished thoroughly without human assistance.
-Designed with the powerful motor, the machine is capable of working fast with high output which can greatly enhance its working efficiency, making it the cost effective one.
-Compact and sturdy construction, the equipment is strong enough to bear whole weight that it can work steadily and consistently with excellent performance.
-With strict process standards, the Mucking Loader for Tunnel Project has superior quality which is suitable for tunnel project. And it is popular among the market due to its wear resistance, easy operation as well as improved working efficiency.
Product Parameter
|
Excavating Dimension(mm) |
4800*1700*2800 |
|
Excavating Depth(mm) |
500 |
|
Unloading Height(mm) |
1646 |
|
Minimum Loading Height(mm) |
1470 |
|
Unloading Distance(mm) |
1600 |
|
Maximum Rotation Angle(°) |
±50 |
|
Weight(T) |
8.8 |
|
Dimension(mm) |
6100x1800x1800 |
|
Loading Capacity(m³/hour) |
80 |
|
Min Turning Radius(mm) |
5500 |
|
Travelling Speed(m/min) |
2-3.8 |
|
Applied Tunnel Gradient(°) |
≤30 |
|
Motor Power(kw) |
30 |
|
Maximum Material By Size(LxWxH) (mm) |
650x680x650 |
|
Ground Clearance(mm) |
280 |
|
Applied Working Section(W*H) (m) |
≥2.2x2.2 |
|
Nominal Working Pressure(Mpa) |
20 |
