Product Details:
|
| Product Name: | Long Boom Excavator | Applicable Industries: | Manufacturing Plant, Construction Works , Energy & Mining |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Moving Type: | Crawler Excavator |
| Product Keywords: | Excavator Machine | Certification: | ISO |

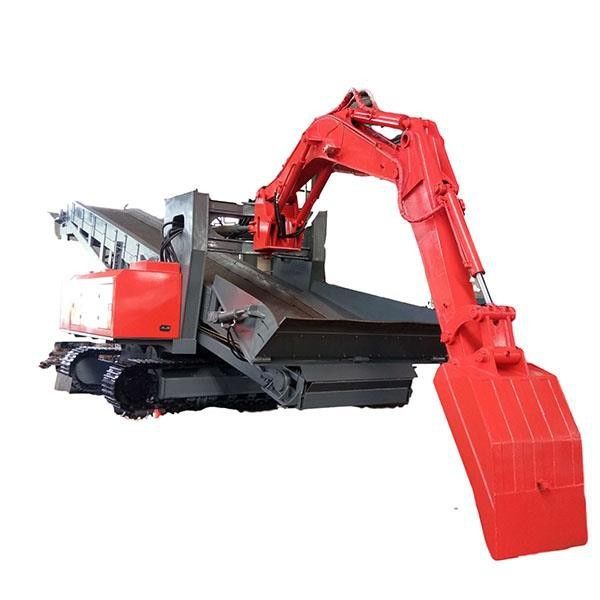

Material Loading And Discharging Machine
Product Function and Application:
It is a multi-function excavator integrating discharging,conveying,loading .
The machine is used for train to discharging and loading coal or other materials from train carriage.
Coal or other materials can be discharged directly from train carriage and conveyed to dumping truck,no materials are needed to discharge on the ground.
Technical Data
|
machine Power |
kw |
55 |
|
|
Weight |
kg |
18000 |
|
|
Dimension(length*width*height) |
mm |
11000*2300*2700mm |
|
|
Hydraulic system |
pressure of hydraulic system |
MPa |
22 |
|
max flow of hydraulic system |
L/min |
106 |
|
|
max temperature of hydraulic system |
℃ |
75 |
|
|
Walking mechanism |
walking driving mode |
/ |
hydraulic motor reducer |
|
crawler width |
mm |
450 |
|
|
walking type |
/ |
crawler |
|
|
ground clearance |
mm |
300 |
|
|
clibming ability |
° |
15 |
|
|
Bucket Loading |
bucket capacity |
L |
70 |
|
excavating width |
mm |
≥5000 |
|
|
excavating height |
mm |
≥6000 |
|
|
dumping height |
mm |
≥4000 |
|
|
excavating depth |
mm |
≥1000 |
Material Loading And Discharging Machine
