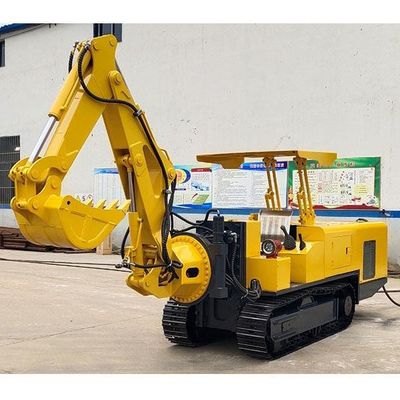

Underground Tunnel Repair And Maintenance Machine For Coal Mine

Underground Tunnel Repair And Maintenance Machine For Coal Mine
Underground Tunnel Repair And Maintenance Machine For Coal Mine

Large Image :  Underground Tunnel Repair And Maintenance Machine For Coal Mine

Product Details:
Place of Origin: shandong
Brand Name: Shante
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: package
Delivery Time: 5-8 day
Payment Terms: negotiate

Underground Tunnel Repair And Maintenance Machine For Coal Mine

Description
Product Name: Underground Mining Excavator Applicable Industries: Construction Works
Marketing Type: Ordinary Product Certificate: ISO9001
Feature: Mineral Equipment Keywords: Mucking Loader

Tunnel Repair And Maintenance Machine For Coal Mine

Product Function and Application:



It is a multi-function repair and maintanence equipment mainly used for coal road,half coal road and whole rock roadway in the caol tunnel.


It can carry out daily maintainence of breaking and excavating and shoveling for tunnel roof and floor and ribs,and also breaking big rock into smaller to be convenient for loading.



The machine have different action of excavation and side excavation and turning and rock-breaking and lifting.



It can dig ditch and break rock and clean float coal and clean the bottom of belt conveyor and

smooth roadway and loading small parts etc.



One machine can complete the whole work of tunnel maintainence.



Technical Data

machine Power

kw

30

Weight

kg

6000

Dimension(length*width*height)

mm

6500*1200*1920(1320mm   without cab)

Hydraulic system

pressure of hydraulic system

MPa

22

max flow of hydraulic system

L/min

106

max temperature of hydraulic system

75

Walking mechanism

walking driving mode

/

hydraulic motor reducer

crawler width

mm

300

walking type

/

crawler

ground pressure

MPa

≤0.1

walking speed

m/min

25

ground clearance

mm

220

clibming ability

°

15

Bucket Loading

bucket capacity

L

70

max bucket excavating force

KN

37

excavating width

mm

≥4500

excavating height

mm

≥4000

dumping height

mm

≥2100

excavating depth

mm

≥1000

machine turning radius

mm

≤7000



 TIM图片20191011101049



 TIM图片20191011102351



TIM图片20191011101428TIM图片20191011101428



TIM图片20191011101656
